CFD Lab – Virtual Testing
Reliable virtual testing of airflow products: fast, visual, and cost-effective.

​​​

Deratec’s CFD Lab provides fast and accurate simulations to assess airflow, pressure drop, rain rejection, acoustic and more — without the need for physical testing.


Our results have been verified against physical test data, giving you confidence in performance outcomes while saving time and cost.



What We Test:

  • Airflow rate and velocity distribution

  • Pressure drop through components

  • ADPI, Throw and coverage (e.g. for diffusers)

  • Rain resistance and water proof

  • Wind loading (for exposed components)

  • Sound transmission loss/insertion loss

Applications:

  • Louvres (rain, pressure drop, wind loading, acoustic)

  • Roof ventilators (rain, pressure drop, acoustic)

  • Fans & filters (pressure drop, backpressure)

  • Diffusers & grilles (throw pattern, ADPI)

  • Other custom ventilation parts

Standards Referenced:

We simulate according to key principles from:

  • AS/NZS 4740 (louvres and ventilators)

  • AS1191 & ISO 717-1(louvres and ventilators)

  • ASHRAE guidelines (diffusers and grilles)

  • ISO 5801 (fans)

  • Other applicable test standards based on product type and application



















What You Receive:

  • Clear, professional PDF report with visuals and summary

  • Airflow diagrams, pressure charts, and performance insights

  • Optional test certificate confirming simulation conditions and outcomes

  • Branding options for client-facing documentation









Why Choose CFD Lab?

No physical prototypes required

✅ Faster than lab testing

✅ Visually clear results for clients and teams

✅ Proven correlation with physical tests

✅ Cost-effective and repeatable

Let’s Test Your Product

Submit your product details — we’ll evaluate the product's performance to support compliance, development, or client communication.

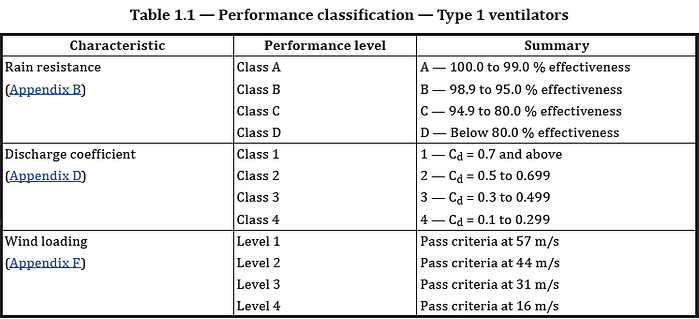

Performance Classifications for Ventilator Type 1 (Louvres) – AS 4740:2025

Moder_Glazing_LV95 louvre-wind loading test v45_edited.png

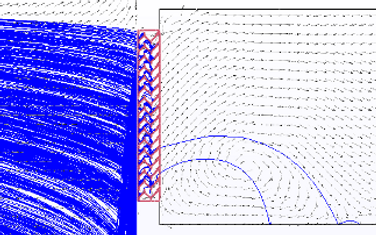

Performance Evaluation of Louvre using CFD Virtual Test - AS 4740:2025
